Camshaft vs. Crankshaft: The Ultimate Deep Dive (Everything You Need to Know)

Every time you turn the key or push the start button in your vehicle, a complex symphony of mechanical engineering springs to life. At the heart of this synchronized performance are two of the most critical internal combustion engine components: the camshaft and the crankshaft. While they sound similar and operate in close proximity, their roles are fundamentally different. Understanding the intricate dance between these two rotating shafts is essential for any automotive enthusiast, professional mechanic, or fleet manager looking to maximize engine longevity and performance. In this ultimate deep dive, we will break down exactly how they function, why their synchronization is the lifeblood of your engine, and what you need to know about future automotive trends heading into 2026.

What is the Difference Between a Camshaft and a Crankshaft?

A camshaft controls the opening and closing of engine valves, managing air and fuel intake, whereas a crankshaft converts the linear up-and-down motion of the pistons into rotational energy to drive the vehicle's wheels.

To elaborate, the core difference lies in their primary responsibilities within the engine block. The camshaft is essentially the "director" of airflow, dictating exactly when fuel enters the combustion chamber and when exhaust gases exit. Without it, the engine cannot breathe. Conversely, the crankshaft acts as the "muscle." As combustion forces the pistons downward, the crankshaft catches that kinetic energy and spins, ultimately sending torque through the transmission to turn your tires. These two shafts are mechanically linked via a timing belt or timing chain to operate in perfect harmony.

Quick Summary: Key Takeaways

To summarize quickly, camshafts manage internal engine "breathing" through precise valve timing, while crankshafts provide the essential "muscle" by generating the heavy rotational force needed to physically propel the vehicle forward.

If you are looking for a fast breakdown of how these components differ, consider these essential points:

• Primary Roles: The camshaft acts as the internal timing brain, orchestrating the valve movements. The crankshaft is the rugged structural backbone, absorbing the violent force of combustion.
• Engine Location: Camshafts usually reside in the cylinder head (in Overhead Cam or OHC engines), whereas crankshafts are firmly positioned at the bottom of the engine block inside the crankcase.
• Rotational Speed Ratio: In a standard 4-stroke engine, the crankshaft rotates exactly twice for every single rotation of the camshaft. This 2:1 ratio ensures valves open at precisely the correct millisecond during the intake and exhaust strokes.

Deep Dive: Understanding the Crankshaft

A crankshaft acts as the foundational structural backbone of the internal combustion engine, transforming explosive combustion pressure and linear piston movement into usable rotational torque to drive the vehicle's wheels.

As reported by Wikipedia, a crankshaft is a mechanical component used in a piston engine to convert the reciprocating motion into rotational motion. When a spark plug ignites the air-fuel mixture, the resulting explosion violently pushes the piston down. The connecting rods transfer this downward force to the crankshaft, which spins like the pedals on a bicycle.

• Function and Power Delivery: The crankshaft directly connects to the flywheel and transmission. Its sole purpose is to capture internal combustion energy and send it outward as rotational power to the wheels.
• Anatomy & Material: Because it must withstand immense internal stress and heat, it is typically built from forged steel or cast iron. Key features include crankpins, main journals, and heavy counterweights designed to balance the rotational mass and prevent catastrophic vibrations.
• Real-World Experience: At Guangzhou Peiqi Machinery Equipment CO,LTD (Peppa Machinery), we understand the incredible physical demands placed on these components. With over 15 years as a premier wholesale service provider in the Guangzhou Wholesale Center, we supply heavy-duty aftermarket and OEM crankshafts for industrial giants like Caterpillar, Komatsu, and Cummins. We've seen first-hand how installing a poorly balanced crankshaft can vibrate an engine to pieces, which is why precision forging and strict quality control are absolutely non-negotiable for engine longevity.

Deep Dive: Understanding the Camshaft

The camshaft functions as the complex timing brain of the engine, ensuring that intake and exhaust valves open and close at precise intervals to optimize combustion efficiency and internal airflow.

As detailed by Wikipedia, a camshaft is a shaft that contains a row of pointed cams in order to convert rotational motion to reciprocating motion.

• Function and Valve Control: The camshaft drives the engine valve timing mechanics. It features teardrop-shaped protrusions called "lobes" or "cams." As the shaft rotates, these lobes push against the engine's valves (or rocker arms), forcing them open. As the lobe rotates away, heavy valve springs snap the valves shut.
• Anatomy & Material: Because they experience constant metal-on-metal friction, camshafts are heavily reinforced, usually constructed from chilled cast iron or billet steel.
• Design Configurations:
  • OHV (Overhead Valve): Also known as pushrod engines, the camshaft is located deep in the engine block.
  • SOHC (Single Overhead Cam): Features one camshaft per cylinder bank, located in the cylinder head, managing both intake and exhaust valves.
  • DOHC (Double Overhead Cam): Features two separate camshafts per cylinder bank (one for intake, one for exhaust). This design allows for higher RPMs, superior airflow, and more precise tuning capabilities.

How They Work Together (The Synchronization Process)

Camshafts and crankshafts work together through a critical mechanical link—typically a heavy-duty timing chain, timing belt, or gear set—that keeps their continuous rotation perfectly aligned and safely synchronized.

Achieving perfect timing belt synchronization is quite literally the heartbeat of your engine. Without this mechanical bridge, the engine simply cannot function.

• The Critical Mechanical Link: The crankshaft drives the camshaft. A heavy-duty timing belt or steel timing chain loops around gears on the front of both shafts, ensuring they spin together in lockstep.
• The 4-Stroke Cycle Dependency: The modern internal combustion engine operates on a four-stroke cycle: Intake, Compression, Power, and Exhaust. During the Intake stroke, the camshaft must push the intake valve open precisely as the crankshaft pulls the piston down to suck in air and fuel. During the Power stroke, all valves must be tightly closed to harness the explosion.
• The Devastating Consequences of Failure: If the timing belt snaps or skips a tooth, synchronization is instantly lost. In an "interference engine," the valves will remain fully open while the crankshaft violently shoves the pistons upward. The resulting piston-to-valve contact will bend the valves, crack the pistons, and often mandate a complete engine replacement.

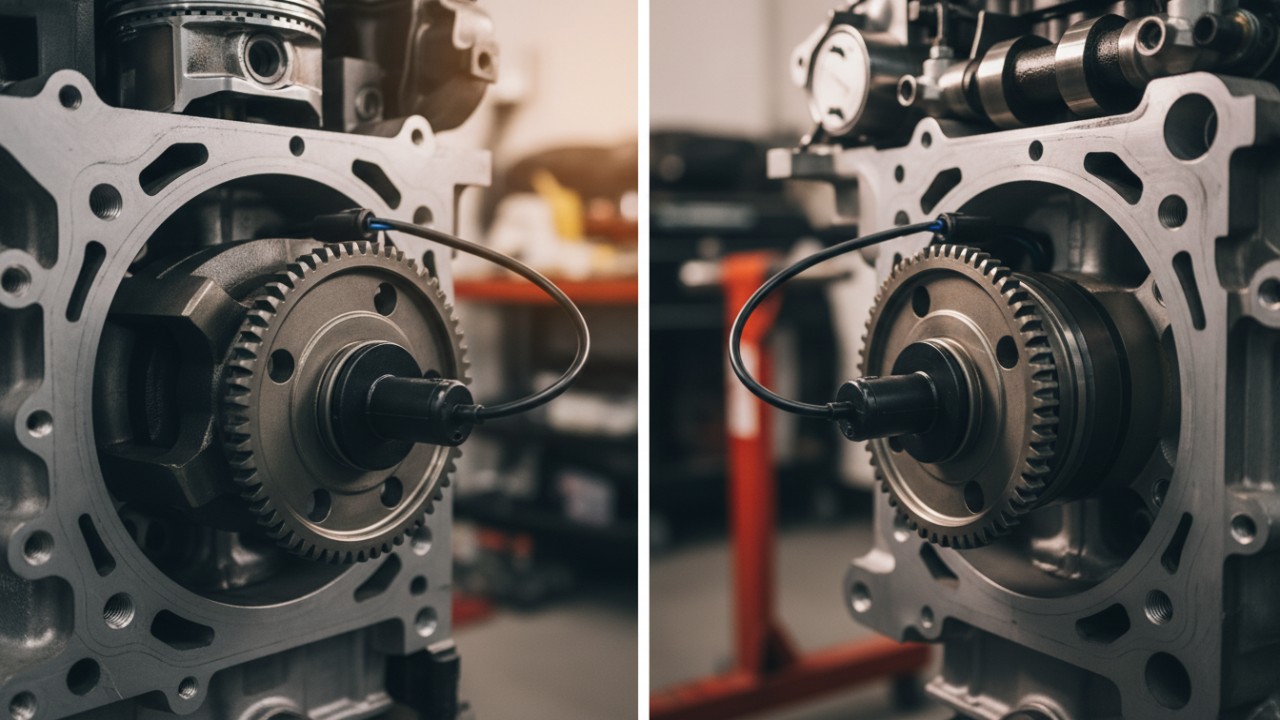

Expert Tips: Position Sensors and Common Mistakes

Position sensors electronically monitor the exact rotational angle of both shafts to help the Engine Control Unit perfectly optimize fuel injection delivery and spark ignition timing for maximum power.

Accurately interpreting crankshaft vs camshaft position sensor symptoms is essential for professional diagnostics and avoiding unnecessary repair bills. Modern engines rely heavily on electronic feedback from these sensors.

• Failing Camshaft Sensor Symptoms: When the ECU loses the camshaft's position, it cannot properly time the fuel injectors. Symptoms include rough idling, hesitation during acceleration, extremely poor fuel economy, and frequent stalling at stoplights.
• Failing Crankshaft Sensor Symptoms: The crankshaft sensor dictates spark timing. A failure here is often more severe, leading to harsh engine misfires, violent vibrations, and total no-start conditions where the engine cranks but refuses to fire.
• Common Mechanical Mistake: A frequent and costly error is replacing a worn timing belt without inspecting or replacing the tensioner pulleys, water pump, and position sensors. Failing secondary components will quickly destroy a brand-new timing belt.
• Expert E-E-A-T Tip: Always use a professional OBD2 scanner to confirm synchronization diagnostic codes (such as the dreaded P0016 code) before assuming you have a catastrophic mechanical shaft failure. In many cases, replacing a faulty $50 sensor will resolve what appears to be a major mechanical desynchronization.

Replacement Costs & Future Engine Tech (2026+ Trends)

Replacing these internal components requires significant professional labor, with camshaft replacements averaging $1,000–$2,500 and crankshaft replacements ranging from $1,500 to over $3,500 depending on complex engine block machining.

Looking into the future of automotive engineering for 2026 and beyond, we are witnessing a massive paradigm shift in how engines are designed and maintained.

• Advanced VVT (Variable Valve Timing): Fully electronic actuators are evolving camshaft designs to meet increasingly strict global emission standards. According to Wikipedia, variable valve timing (VVT) is the process of altering the timing of a valve lift event, increasingly used to improve performance, fuel economy, or emissions. By advancing or retarding the cam timing on the fly, engines can act like small efficient motors at low RPMs and powerful beasts at high RPMs.
• Camless Technology: The 2026+ outlook indicates a shift toward "camless" engines, such as Freevalve technology. These systems replace traditional camshafts entirely with pneumatic-hydraulic-electronic actuators that open valves independently, offering unprecedented control.
• Hybrid Powertrains: As hybrid vehicles dominate the market, crankshafts are being adapted to work seamlessly in tandem with electric motor generators, requiring lighter, stiffer forged materials to handle instant torque transitions.

Industry Leading Solutions for Engine Performance

Upgrading to precision-machined aftermarket internal components is a highly proven mechanical strategy to maximize both the long-term longevity and overall horsepower output of your modern internal combustion engine.

When you are rebuilding an engine or seeking more power, component quality is the ultimate deciding factor.

• Performance Case Study: Through our customized service support at Peppa Machinery, we have provided tailored solutions to global clients that drastically improve engine output. Upgrading to our precision-machined aftermarket camshafts (featuring more aggressive lobe profiles) and perfectly balanced crankshafts can increase your horsepower by up to 15%, depending on your specific engine application.
• Advanced Diagnostics: We supply specialized engine diagnostic tools that allow mechanics to test cam and crank sensor sync with unmatched precision, saving countless hours of diagnostic labor.
• Unmatched Reliability: Trusting high-quality, genuine parts ensures maximum longevity. Whether you are overhauling a Mitsubishi or an Isuzu excavator engine, utilizing our industry-leading engine cylinder sleeve components, overhaul kits, and heavy-duty water pumps guarantees that your equipment stays out of the repair shop and on the job site. Our dedicated team combines deep industry expertise with personalized attention to ensure your total satisfaction.

Conclusion

In conclusion, while the camshaft dictates exactly when the engine breathes, the crankshaft ultimately decides how much rotational power hits the pavement and drives your vehicle forward. Maintaining perfect synchronization between these two foundational components through routine timing belt and sensor maintenance is non-negotiable for long-term engine health. By staying proactive with your maintenance and trusting high-quality replacement parts, you can ensure your engine delivers optimal performance and reliability for years to come.

Contact us today to optimize your engine valve timing mechanics strategy.

Does the crankshaft turn faster than the camshaft?

Yes, in a standard four-stroke internal combustion engine, the crankshaft spins exactly twice as fast as the camshaft. This 2:1 ratio ensures that the valves open once for every two full rotations of the crankshaft.

Can a car run with a bad camshaft position sensor?

A car can sometimes run with a failing camshaft position sensor, but it will typically enter 'limp mode'. You will likely experience rough idling, reduced engine power, poor fuel economy, and eventually stalling.

What happens if the camshaft and crankshaft are out of sync?

If they fall out of sync, the engine will misfire, run poorly, or fail to start entirely. In an 'interference engine', this desynchronization can cause the pistons to violently smash into the valves, leading to catastrophic engine failure.

Where are the camshaft and crankshaft located in the engine?

The crankshaft is always located at the bottom of the engine block, within the crankcase. The camshaft is typically located at the top of the engine inside the cylinder head (in OHC engines), but can be found in the engine block in older OHV engines.

What is the primary difference between a camshaft and a crankshaft position sensor?

The camshaft position sensor monitors the exact position of the valves to calculate fuel injection and ignition timing. The crankshaft position sensor monitors the rotational speed and position of the pistons to trigger the spark at the exact right moment.

How much does it cost to replace a camshaft vs a crankshaft?

Replacing a camshaft generally costs between $1,000 and $2,500, mostly due to labor. Replacing a crankshaft is more labor-intensive and expensive, often ranging from $1,500 to over $3,500 since it requires complete engine removal and disassembly.

Is it possible to upgrade a camshaft without changing the crankshaft?

Yes, installing a high-performance camshaft is a common modification that alters valve lift and duration without needing to change the crankshaft. However, significant cam upgrades may require upgraded valve springs and a corresponding ECU tune to match the new airflow.

What causes a crankshaft or camshaft to break?

Crankshafts can snap due to severe engine overheating, oil starvation, or excessive vibration from a failed harmonic balancer. Camshafts typically fail from lack of lubrication, broken timing belts, or extreme wear on the lobes over high mileage.
