Overhaul Gasket Set vs. Full Set: Which Kit Do You Actually Need for a Successful Rebuild?

Key Takeaways: Quick Guide to Gasket Kits

• Full Gasket Set: A complete sealing solution for an engine completely removed from the chassis (out-of-frame), including the rear main seal.
• Overhaul Gasket Set: Often used for "in-frame" rebuilds in heavy-duty applications, covering pistons and liners but potentially excluding the rear main seal.
• Conversion Set: Also known as a "Lower Engine Set," covering the oil pan and timing cover but excluding the cylinder head.
• Head Set: Strictly "top end" components like the head gasket, valve cover gasket, and manifold seals.

What is an overhaul gasket set, and how does it differ from a full set?

An overhaul gasket set is a comprehensive collection of seals designed for major engine refurbishment, but in heavy-duty contexts, it often caters specifically to in-frame rebuilds where the engine block remains in the vehicle.

While the terms are frequently used interchangeably in standard passenger automotive sealing solutions, distinct differences arise in the commercial and heavy machinery sectors (like those serviced by Peppa Machinery). A full set is the "nuclear option"—it includes absolutely every seal required for a bare-block teardown, including the crankshaft rear main seal, which is often inaccessible during an in-frame overhaul.

Conversely, an "overhaul" kit for a diesel excavator might include cylinder liner seals (wet sleeves) but omit the rear main seal, assuming the transmission will not be separated from the engine. Understanding this nuance prevents the nightmare of halting a project to source a missing $20 seal while the engine is open.

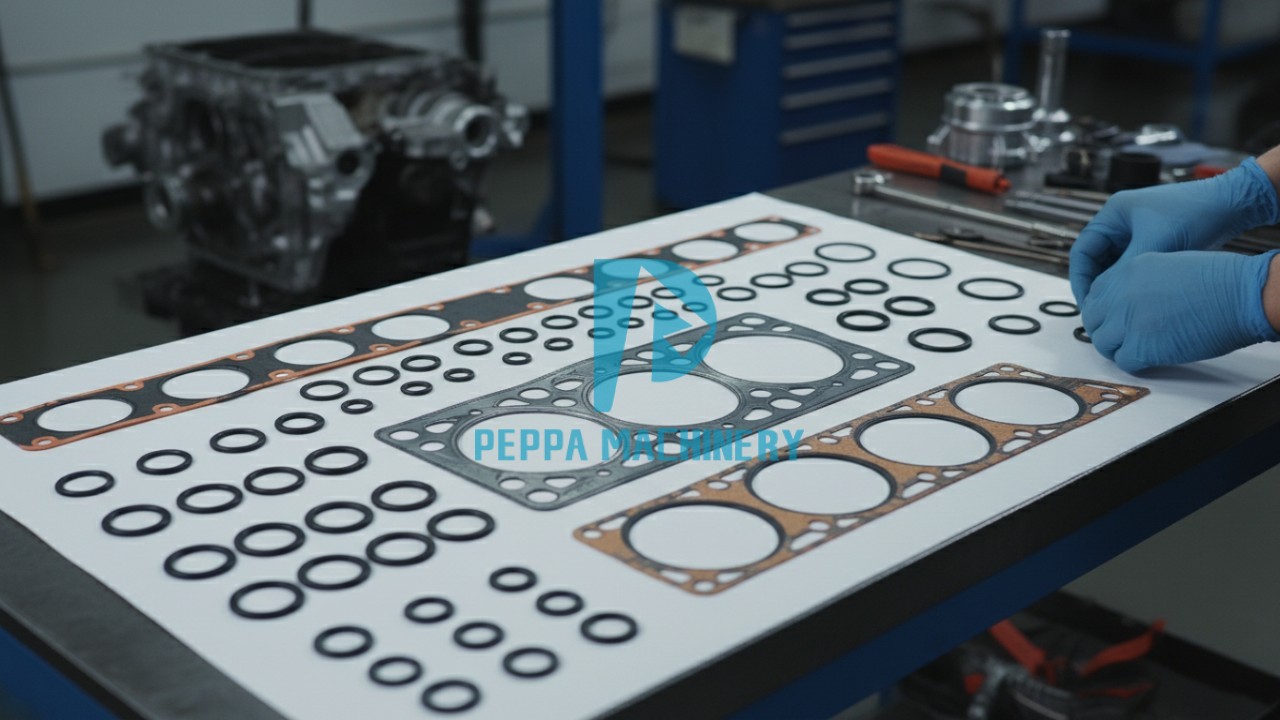

Breaking Down the Box: Anatomy of a Full Rebuild Kit

Complete engine rebuild kit contents vary by manufacturer, but a true Full Set is divided into two primary zones: the top end and the bottom end.

• The Core (Top End): This section centers on the cylinder head gasket—the most critical seal in the engine. It also includes intake and exhaust manifold gaskets, which must withstand extreme thermal expansion.
• The Valvetrain: Premium kits include high-grade valve stem seals (often Viton or Teflon) to prevent oil consumption, along with valve cover gaskets and plenum seals.
• The Bottom End: This covers the oil pan gasket, timing cover gasket, water pump mounting seals, and the rear main seal housing.
• The Critical Small Parts: Often overlooked, a good kit includes fuel injector O-rings, thermostat housing seals, and distributor mounting gaskets. Missing these can lead to vacuum leaks that mimic major mechanical failures.

Decision Matrix: Which Kit Fits Your Project Scope?

Choosing the right kit depends entirely on how far you intend to tear down the engine.

• Scenario A: Blown Head Gasket.
  • Recommendation: Purchase a Head Gasket Set. There is no need to pay for the cylinder head gasket replacement cost plus a bottom-end kit you won't use.
• Scenario B: Leaking Oil Pan & Timing Cover.
  • Recommendation: Compare conversion gasket set vs. full set prices. A conversion set (lower set) is specifically designed for this, saving you money on unneeded head gaskets.
• Scenario C: Complete Remanufacturing.
  • Recommendation: Purchase the Full/Overhaul Set. This ensures material consistency (e.g., all seals are fresh Viton or EPDM) across all mating surfaces.
• Scenario: D: In-Frame Piston Ring Swap.
  • Recommendation: Verify if the "Overhaul" kit includes the oil pan gasket but excludes the difficult-to-reach rear main seal. This is common in the heavy equipment industry.

Industry Insights: Modern Sealing Challenges for 2026 and Beyond

MLS gasket technology 2026 is shifting toward advanced elastomeric coatings designed to handle the rigorous thermal cycling of modern hybrid and high-compression engines.

As engines become smaller but more powerful, the internal pressures rise significantly. According to market analysis by Mordor Intelligence, the automotive gasket market is increasingly adopting advanced materials like fluoroelastomers (FKM) and multi-layer steel (MLS) to meet stricter emission regulations and durability standards expected through 2026. These materials are engineered to resist the aggressive chemical composition of synthetic oils and ethanol-blended fuels.

• Higher Compression Standards: Direct-injection engines require MLS gaskets with "stopper" layers to prevent combustion gas blowout.
• Chemical Compatibility: Modern seals must resist degradation from extended-life coolants (OAT/HOAT).
• Thermal Cycling: Start-stop technology in hybrids creates rapid heating and cooling cycles that can fatigue older composite gasket materials.

Expert Installation Tips to Avoid Repeat Failures

Surface Prep is King: 80% of gasket failures are due to improper deck cleaning or reusing fasteners, not the gasket itself.

A critical rule in modern engine building is the management of Torque-to-Yield (TTY) bolts. These bolts are designed to stretch permanently when torqued. Furthermore, reusing gaskets is a recipe for disaster. As noted by experts at Allied Motor Parts, reusing a head gasket—especially an MLS type—is ill-advised because the "spring memory" of the steel layers is lost after the first heat cycle, making a reliable seal impossible.

• Torque-to-Yield Bolts: Always replace head bolts on modern engines. They are single-use items.
• Dry vs. RTV: Know where to apply sealant. Most MLS gaskets go on dry. Adding silicone to an MLS surface can actually cause it to leak by preventing the embossing from biting into the metal.
• The 'Settling' Myth: Modern composite and MLS gaskets generally do not require re-torquing after a break-in period, unlike older copper or asbestos-based seals.

Why Mechanics Trust Peppa Machinery for Precision Overhaul Kits

At Guangzhou Peiqi Machinery Equipment CO., LTD (Peppa Machinery), we leverage over 15 years of experience to curate Overhaul Gasket Sets that solve real-world field problems.

Located in the Guangzhou Wholesale Center, we specialize in heavy-duty applications for brands like Caterpillar, Komatsu, Cummins, and Isuzu. We understand that in the excavation and heavy machinery world, downtime costs thousands. That is why our kits are rigorously mapped to differentiate between "in-frame" overhaul needs and "full" rebuild requirements.

• Customized Solutions: Whether you need a seal kit for a hydraulic system or a complete engine overhaul kit for a turbocharged excavator, our catalog covers it.
• Material Quality: We utilize next-generation sealing materials that meet or exceed OEM specifications, ensuring longevity even in harsh operating environments.
• Global Reach: From our hub in Guangzhou, we provide professional parts advice and rapid shipping to the global region, ensuring your machinery gets back to work faster.

Conclusion

Selecting between an overhaul gasket set and a full set comes down to the scope of your rebuild—whether the engine is staying in the chassis or being fully removed. Investing in a complete, high-quality kit upfront prevents the frustration of missing small seals like O-rings or valve stem seals, ensuring your rebuild lasts for years to come.

Contact Guangzhou Peiqi Machinery Equipment CO., LTD today to discuss your specific needs and find the perfect kit for your engine.
