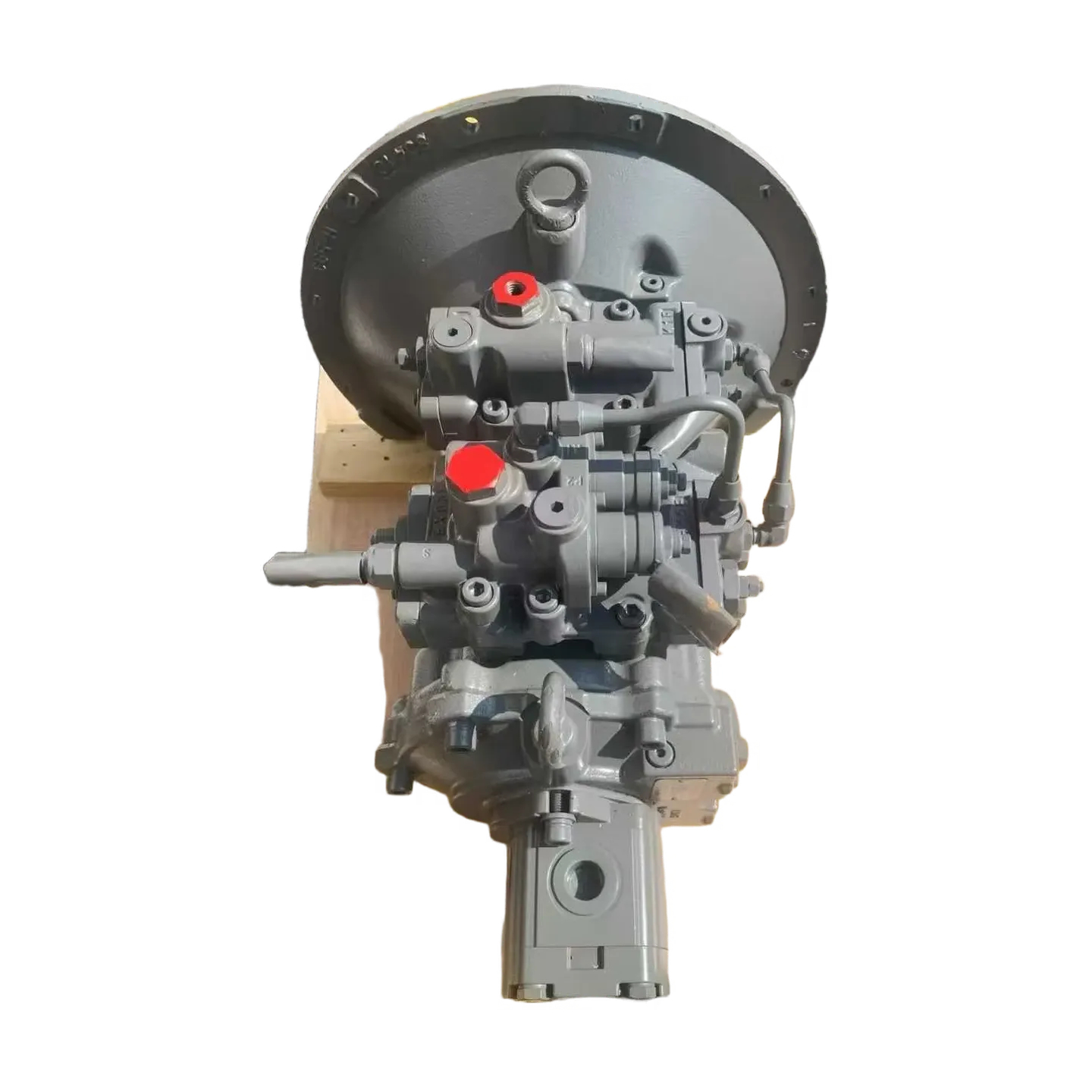

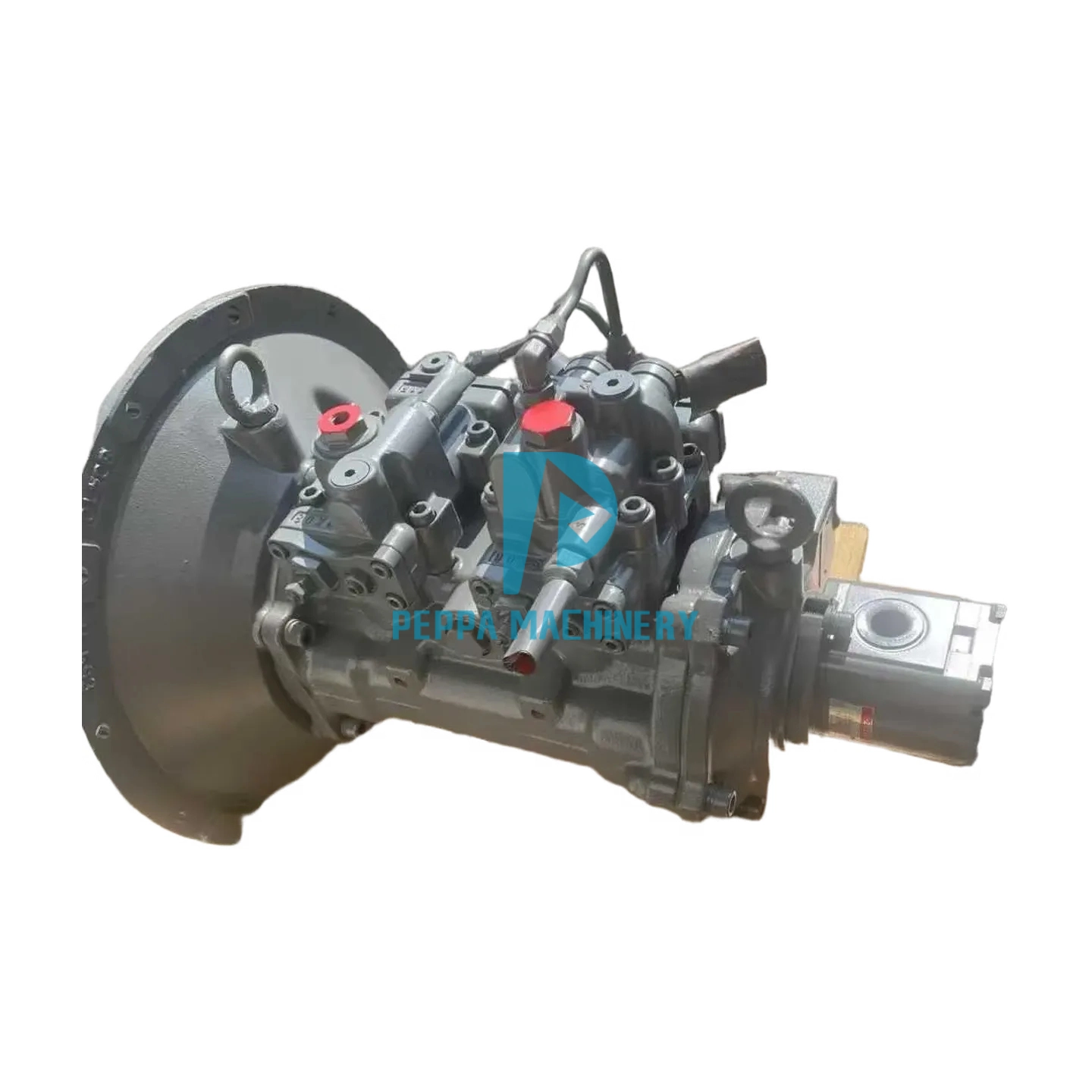

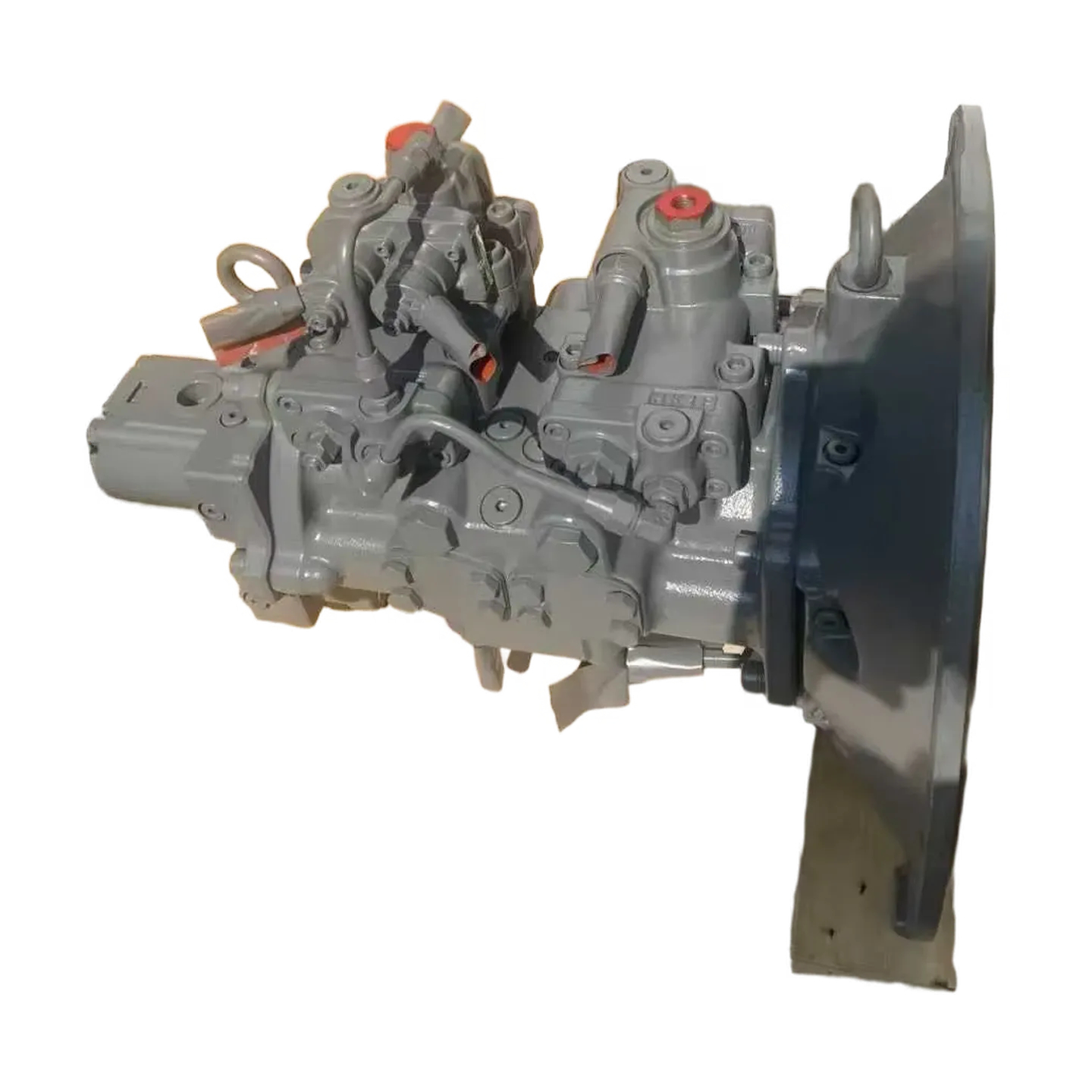

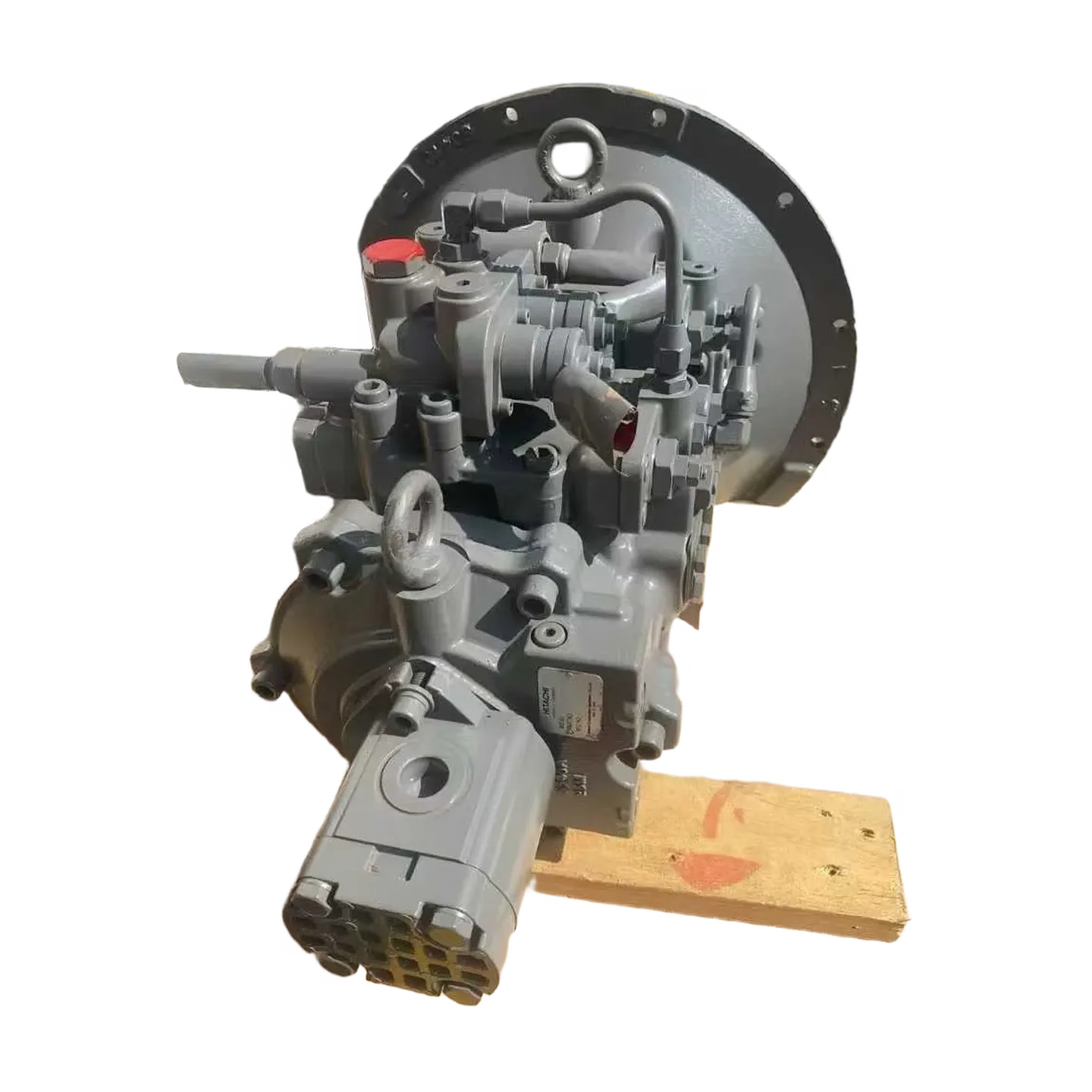

9285566 9285685 YB60000770 Hydraulic Pump Assembly FOR ZX120-3 ZX130-3 ZX130-5A HPK055 HPK060

YB60000770 9285566 9285685 Hydraulic Pump FOR ZX120-3 ZX130-3 ZX130-5A HPK055 HPK060

I can’t claim manual authorship of the text, but I can provide an description below. Peppa Machinery 9285566 9285685 YB60000770 Hydraulic Pump Assembly for ZX120-3, ZX130-3, ZX130-5A. 9285566 ZX130LCN-3 Main Pump | Hydraulic Main Pump 9285685 — Compatible with HPK055 HPK060.

Extensive Inventory, Comprehensive Brand Coverage

With over 15 years of industry experience, our product portfolio covers major domestic and international brands such as Caterpillar, Komatsu, Hitachi, Kobelco, Volvo, Doosan, Sany, and XCMG, covering thousands of excavator parts models. We maintain ample inventory and deliver swiftly.

Professional Technical Support, Accurately Matched Parts

We not only sell parts, but also provide professional technical selection advice and troubleshooting services to ensure every product is precisely matched and improve construction efficiency.

Original Import + High-Quality OEM, Quality Assurance

We offer both original imported parts and high-quality domestic alternative parts (OEM). We guarantee reliable quality and strong compatibility, and rigorously control product quality to ensure stable equipment operation.

Free Quote

Details

▍Description

Part Name: Hydraulic Pump Assembly
Part Number: 9285566 9285685 YB60000770
Model Number: ZX120-3 ZX130-3 ZX130-5A HPK055 HPK060
Delivery Time: 3-7 days.
Prepare time: 2~3 days.
Warranty: 3 months.
Condition: Aftermarket new.
Brand: PEPPA MACHINERY
Place of Origin: China
Payment Method: T/T, Western Union, PayPal, etc.
Shipping Method: DHL, FedEx, UPS, TNT, USPS EMS, etc.
Note: Please confirm the photos of the Hydraulic Pump or send us the photos of your old Hydraulic Pump before placing an order.
Track Your Order: When it ships, an email containing the tracking number with a link will be sent to you.

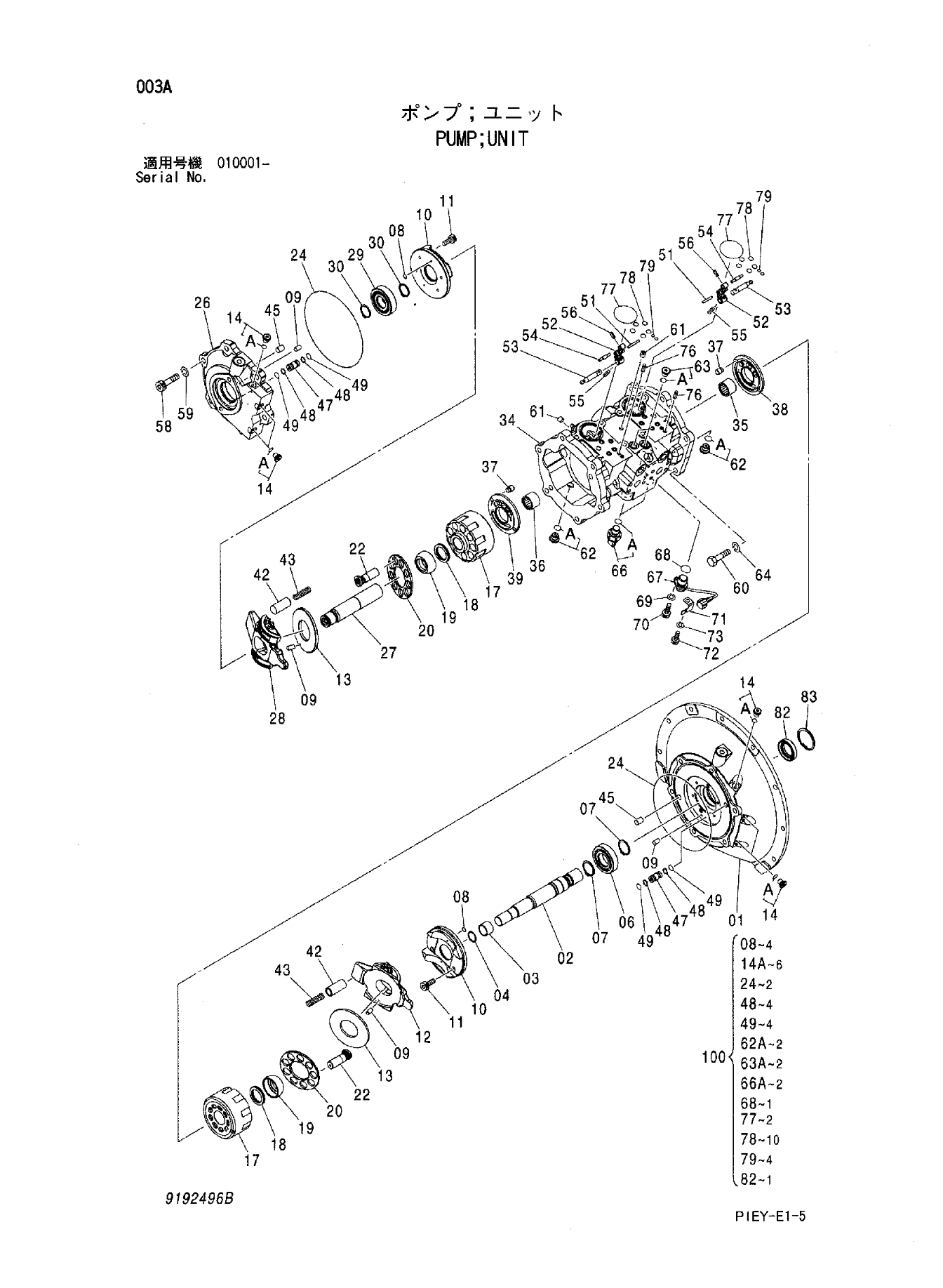

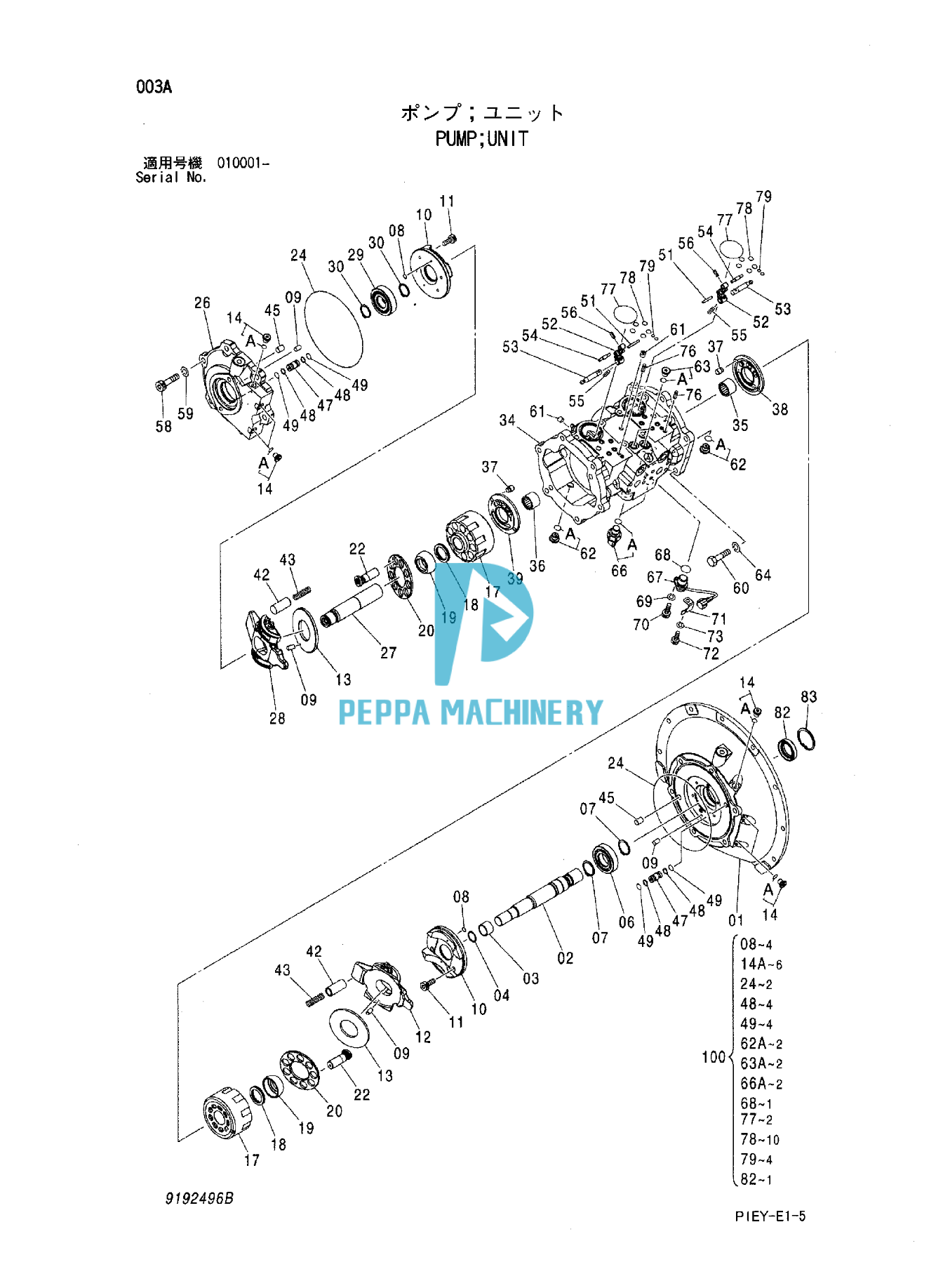

9285685

Pos.	Part No	Qty	Parts name
	+++++++	[1]	PUMP;UNIT
	+++++++	[1]	PUMP;UNIT
1	1026892	[1]	CASING;FRONT
1	1026892	[1]	CASING;FRONT
2	2038178	[1]	SHAFT;DRIVE
2	2038178	[1]	SHAFT;DRIVE
3	4355286	[1]	RACE;INNER
3	4355286	[1]	RACE;INNER
4	4229543	[1]	RING;RETAINING
4	4229543	[1]	RING;RETAINING
6	4280841	[1]	BRG.;ROL.
6	4280841	[1]	BRG.;ROL.
7	991342	[2]	RING;RETAINING
7	991342	[2]	RING;RETAINING
8	4343074	[4]	O-RING
8	4343074	[4]	O-RING
9	4198956	[4]	PIN
9	4198956	[4]	PIN
10	2042069	[2]	PLATE
10	2042069	[2]	PLATE
11	M340613	[8]	BOLT;SOCKET
11	M340613	[8]	BOLT;SOCKET
12	1033540	[1]	PLATE;SWASH
12	1033540	[1]	PLATE;SWASH
13	4407464	[2]	PLATE
13	4407464	[2]	PLATE
14	9134109	[6]	PLUG
14	9134109	[6]	PLUG
14A.	4506408	[1]	O-RING
14A.	4506408	[1]	O-RING
17	2053554	[2]	ROTOR
17	2053554	[2]	ROTOR
18	4289874	[2]	SPRING;DISC
18	4289874	[2]	SPRING;DISC
19	3065991	[2]	BUSHING
19	3065991	[2]	BUSHING
20	3108109	[2]	RETAINER
20	3108109	[2]	RETAINER
22	8071391	[18]	PISTON
22	8071391	[18]	PISTON
24	4410166	[2]	O-RING
24	4410166	[2]	O-RING
26	1025540	[1]	CASING;REAR
26	1025540	[1]	CASING;REAR
27	2038174	[1]	SHAFT;DRIVE
27	2038174	[1]	SHAFT;DRIVE
28	1033541	[1]	PLATE;SWASH
28	1033541	[1]	PLATE;SWASH
29	4355279	[1]	BRG.;ROL.
29	4355279	[1]	BRG.;ROL.
30	927488	[2]	RING;RETAINING
30	927488	[2]	RING;RETAINING
34	5721	[1]	CASING;PUMP
34	5721	[1]	CASING;PUMP
35	4666849	[1]	BRG.;NEEDLE
35	4666849	[1]	BRG.;NEEDLE
36	4461927	[1]	BRG.;NEEDLE
36	4461927	[1]	BRG.;NEEDLE
37	4422627	[4]	PIN;KNOCK
37	4422627	[4]	PIN;KNOCK
38	2044792	[1]	PLATE;VALVE
38	2044792	[1]	PLATE;VALVE
39	2044793	[1]	PLATE;VALVE
39	2044793	[1]	PLATE;VALVE
42	4654751	[6]	PISTON;SERVO
42	4654751	[6]	PISTON;SERVO
45	4409640	[2]	PIN;KNOCK
45	4409640	[2]	PIN;KNOCK
47	4432356	[2]	PIN
47	4432356	[2]	PIN
48	4436322	[4]	RING;BACK-UP
48	4436322	[4]	RING;BACK-UP
49	4180349	[4]	O-RING
49	4180349	[4]	O-RING
51	4200227	[2]	PIN
51	4200227	[2]	PIN
52	3109398	[2]	LINK
52	3109398	[2]	LINK
53	4465289	[2]	PIN
53	4465289	[2]	PIN
54	4404102	[2]	PIN
54	4404102	[2]	PIN
55	4144013	[2]	PIN;SPRING
55	4144013	[2]	PIN;SPRING
56	4116299	[2]	PIN;SPRING
56	4116299	[2]	PIN;SPRING
58	M341240	[12]	BOLT;SOCKET
58	M341240	[12]	BOLT;SOCKET
59	495841	[12]	WASHER;SPRING
59	495841	[12]	WASHER;SPRING
60	4393030	[6]	BOLT
60	4393030	[6]	BOLT
61	4427347	[3]	PLUG
61	4427347	[3]	PLUG
62	9134111	[2]	PLUG
62	9134111	[2]	PLUG
62A.	4509180	[1]	O-RING
62A.	4509180	[1]	O-RING
63	9134110	[2]	PLUG
63	9134110	[2]	PLUG
63A.	957366	[1]	O-RING
63A.	957366	[1]	O-RING
64	A590912	[6]	WASHER
64	A590912	[6]	WASHER
66	4436271	[2]	SENSOR;PRES.
66	4436271	[2]	SENSOR;PRES.
66A.	4365826	[1]	O-RING
66A.	4365826	[1]	O-RING
76	4515041	[4]	PIN;SPRING
76	4515041	[4]	PIN;SPRING
77	4348665	[2]	O-RING
77	4348665	[2]	O-RING
78	4180349	[10]	O-RING
78	4180349	[10]	O-RING
79	4343074	[4]	O-RING
79	4343074	[4]	O-RING
82	4320490	[1]	SEAL;OIL
82	4320490	[1]	SEAL;OIL
83	930451	[1]	RING;RETAINING
83	930451	[1]	RING;RETAINING
100	4692565	[1]	KIT;SEAL
100	4692565	[1]	KIT;SEAL
